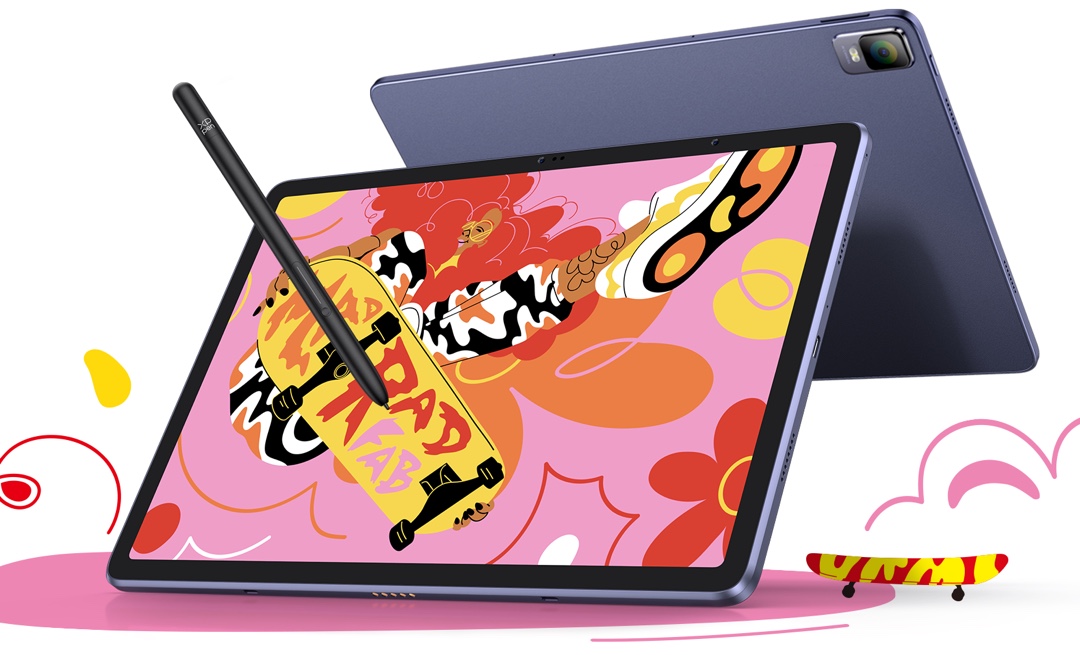

The Android tablet Magic Drawing Pad, newly announced by XP-Pen, is scheduled for domestic release in late July 2024. It is already available for purchase on AliExpress. Designed specifically for digital artists, this tablet combines high technology and portability. The pen performance has already been proven with desktop pen displays, making it a highly capable drawing tool. However, unlike previous models such as the Artist Pro 16 and 14 (2nd Gen), this tablet cannot be connected to a desktop for use as a pen display. Instead, it is an Android 12-based tablet, allowing you to fully enjoy the 16K pen performance with Android apps at any time.
Key Specifications
• Display: 12.2-inch matte touchscreen, 2160 x 1440 resolution (3:2 aspect ratio)
• RAM and Storage: 8GB RAM, 256GB internal storage (expandable up to 512GB)
• Operating System: Android 12
• Battery: 8000mAh (13 hours usage, 18W fast charging supported)
• Pen: X3 Pro pen with 16,384 levels of pressure sensitivity, no battery required
• Other Features: 13MP rear camera, 8MP front camera, USB Type-C port, WiFi 802.11 a/b/g/n/ac, Bluetooth 5.1
Key Features

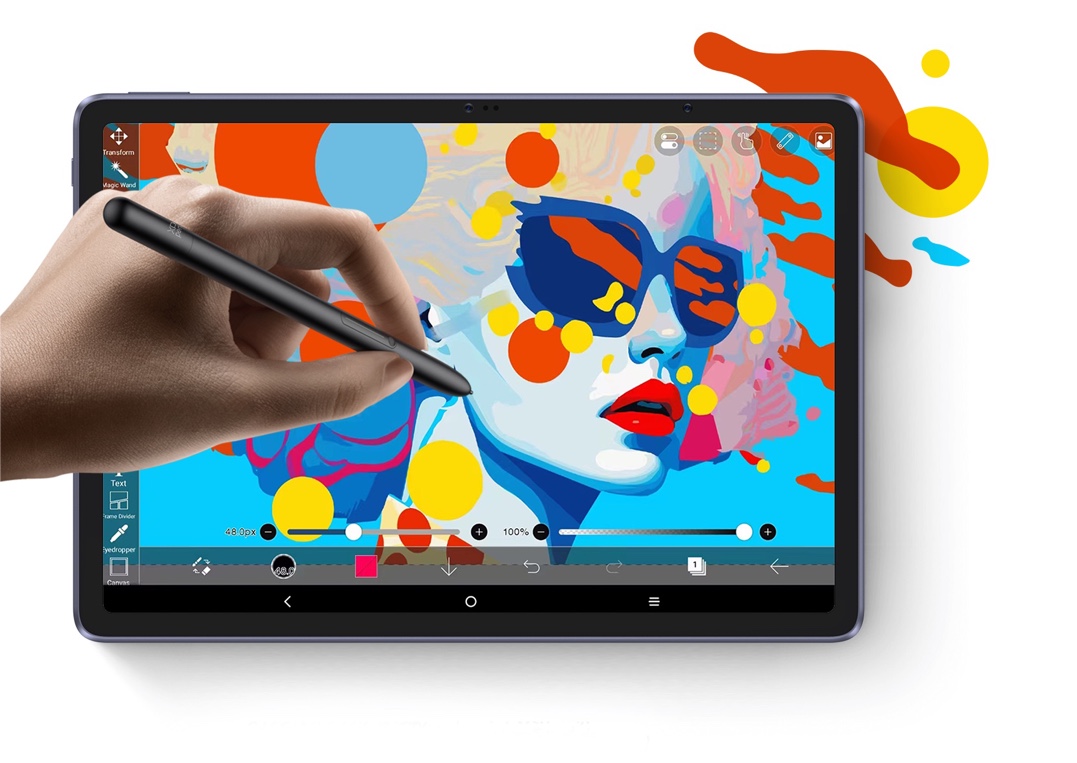

1. X3 Pro Pen: Offers highly precise 16,384 levels of pressure sensitivity and requires no charging, making it always ready to use. The pen’s shortcut keys can be customized to enhance work efficiency.
2. X-Paper Display: The etched glass surface provides a paper-like texture, reducing glare and fingerprints, making it suitable for both indoor and outdoor use.
3. App Compatibility: Pre-installed with a variety of professional drawing software such as ibisPaint, ArtRage Oils, and Medibang Paint, ready for immediate use.
4. Portability: With a thickness of 6.9mm and a weight of 599g, it is lightweight and easy to carry anywhere, facilitating creative activities on the go.
Here is a comparison table with the recently released Snapdragon 8 Gen 3.
| Specification | MediaTek MT8771 | Snapdragon 8 Gen 3 |
| CPU Core Configuration | 8 cores (2x Cortex-A76, 6x Cortex-A55) | 8 cores (1x Cortex-X4, 5x Cortex-A710, 2x Cortex-A510) |
| CPU Architecture | ARM Cortex-A76, Cortex-A55 | ARM Cortex-X4, Cortex-A710, Cortex-A510 |
| GPU | ARM G57 MC2 | Adreno 750 |
| Process Technology | 7nm | 4nm |
| Max Clock Speed | 2.4 GHz (A76) | 3.2 GHz (X4) |
| AI Capabilities | Basic AI processing | Advanced AI processing (including Hexagon processor) |
| Connectivity | WiFi 5, Bluetooth 5.1 | WiFi 7, Bluetooth 5.3 |
| Supported RAM | LPDDR4X | LPDDR5X |
| Camera Support | Up to 64 MP | Up to 200 MP |
| Battery Efficiency | Moderate | High |

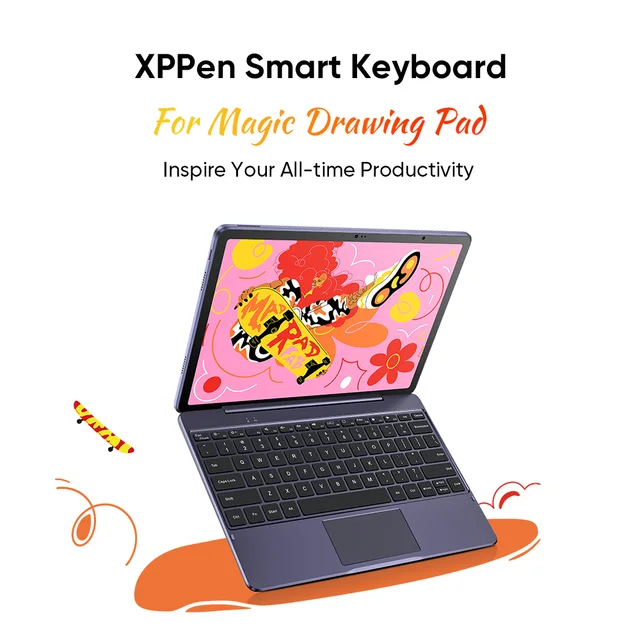

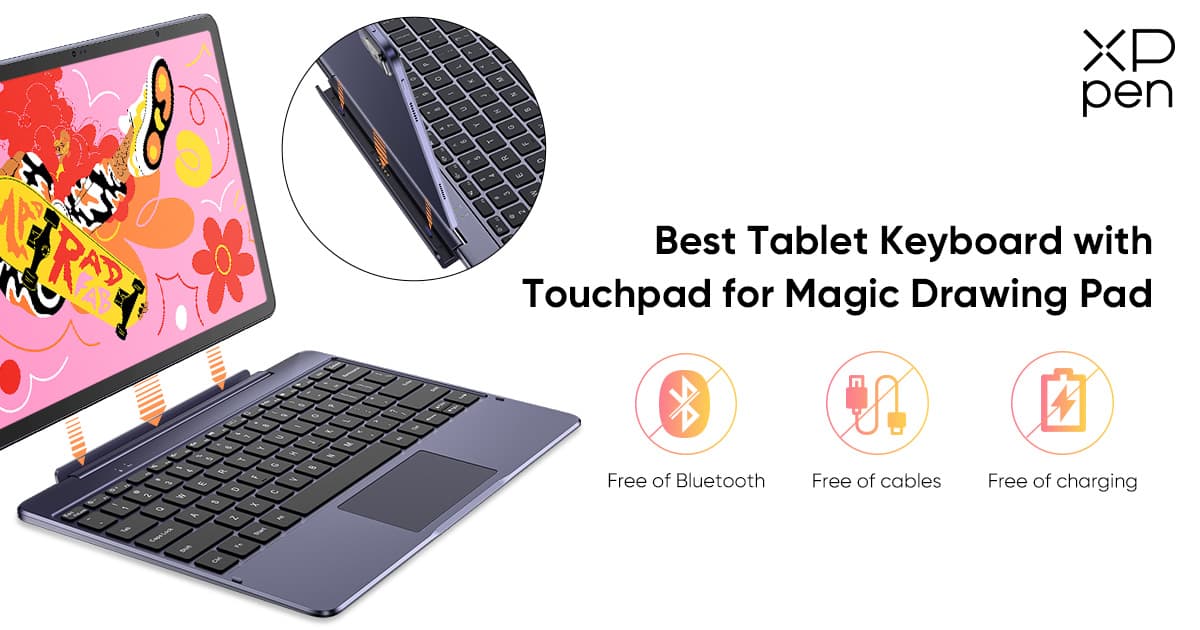

The compatible keyboard for XP-Pen’s Magic Drawing Pad is the ACK08 Smart Keyboard. This keyboard is designed to enhance the digital drawing experience and offers several advantages.
Key Features
1. Connection Method: It connects easily without Bluetooth pairing using the POGO pin interface. This allows for stable and quick connections.
2. PC-like Typing Experience: The full-sized keyboard, with 79 keys and a large 41.5cm² touchpad, provides a PC-level typing feel.
3. Adjustable Angles: It can be adjusted to various angles from 0° to 175°, allowing users to find the most comfortable working angle.
4. Lightweight: Weighing approximately 615g, it is easy to carry.
5. Additional Functions: Includes 14 function keys for quick access to volume control, brightness adjustment, video play/pause, screen lock, and more.
Product Specifications
• Interface: POGO pin, plug and play
• Power Supply Method: Powered by the tablet
• Size: 280mm x 195mm
• Weight: 615g
This keyboard further enhances the drawing and typing capabilities of the Magic Drawing Pad, helping designers and artists work more efficiently.
